Inside the Millionaire
View 3 - The Rack Gears

[View 1] [View 2] [View 3] [View 4] [View 5]

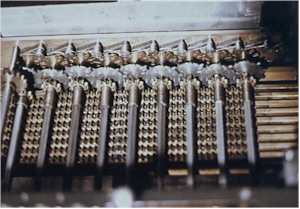

"These rack gears live directly below the input sliders. The position of the input slider moves the cog forward on a square shaft (note numbers engraved on the face of the normally hidden wheels to rear of cogs). Each rack gear is shifted to the right by a pin on the direct multiplier table assembly, which in turn rotates a gear that turns a square shaft and delivers a number to the carriage. " Jim McDermaid

Photos: Courtesy of Jim McDermaid
